Introduction
This is a simple component that allows you to visually create paths in TXB, using a T2DSceneObject as LinkPoints. Allowing objects to simply follow the link points in order.
[edit]
The Code
/*******
* GarageGames.com
* Basic code for moving paths taken from
* Platformer Framework
*/
using System;
using System.Collections.Generic;
using System.Text;
using Microsoft.Xna.Framework;
using GarageGames.Torque.Core;
using GarageGames.Torque.Util;
using GarageGames.Torque.Sim;
using GarageGames.Torque.T2D;
using GarageGames.Torque.SceneGraph;
using GarageGames.Torque.MathUtil;
namespace GarageGames.Torque.PlatformerFramework.InteractiveObjects
{
[TorqueXmlSchemaType] //This is so it can be exported into the schema of components used by TXB
class PathComponent : TorqueComponent, IT2DForceGenerator
{
//======================================================
#region Public properties, operators, constants, and enums
/// <summary>
/// Specifies whether or not this platform should start when it is registered. If set to false, Start must be called
/// at some point to make the platform move.
/// </summary>
[TorqueXmlSchemaType(DefaultValue = "1")]
public bool RunOnInit
{
get { return _runOnInit; }
set { _runOnInit = value; }
}
/// <summary>
/// Specifies whether the platform should repeat along the path when it reaches the end.
/// </summary>
[TorqueXmlSchemaType(DefaultValue = "1")]
public bool Loop
{
get { return _loop; }
set { _loop = value; }
}
public T2DSceneObject SceneObject
{
get { return sceneObject; }
set { sceneObject = value; }
}
/// <summary>
/// Specifies whether or not this platform is currently running, or whatever.
/// </summary>
public bool IsRunning
{
get { return _running; }
}
/// <summary>
/// Specifies the speed that object moves at
/// </summary>
[TorqueXmlSchemaType(DefaultValue = "5")]
public float Speed
{
get { return speed; }
set { speed = value; }
}
#endregion
//======================================================
#region Public methods
/// <summary>
/// Start the platform moving from its start position to the first node on its path.
/// </summary>
public void Start()
{
if (path.Count == 0)
return;
myOwner.Position = _startPosition;
_running = true;
_currentPathNode = 0;
_destination = _startPosition;
_travelToCurrentNode();
}
public override void CopyTo(TorqueComponent obj)
{
base.CopyTo(obj);
PathComponent obj2 = obj as PathComponent;
obj2.Loop = Loop;
obj2.RunOnInit = RunOnInit;
}
#endregion
//======================================================
#region Private, protected, internal methods
/// <summary>
/// IT2DForceGenerator interface method. Called by the Physics component before the current move is processed.
/// </summary>
public virtual void PreUpdateForces(Move move, float elapsed)
{
if (!_running)
return;
if (Vector2.Distance(_destination, myOwner.Position) < myOwner.Physics.Velocity.Length() * elapsed)
_arrived = true;
}
/// <summary>
/// IT2DForceGenerator interface method. Called by the Physics component after the current move is processed.
/// </summary>
public virtual void PostUpdateForces(Move move, float elapsed)
{
if (_arrived)
_reachedNode();
}
/// <summary>
/// Sets the velocity of the platform towards the current target node on the path.
/// </summary>
protected void _travelToCurrentNode()
{
_arrived = false;
_source = _destination;
_destination = _currentNodePosition();
Vector2 temp1 = (_destination - _source); //Vector2.Multiply(_destination - _source, Speed);
temp1.Normalize();
myOwner.Physics.Velocity = temp1 * Speed;
Vector2 temp2 = myOwner.Physics.Velocity;
temp2.Normalize();
}
/// <summary>
/// Returns the current target node position.
/// </summary>
/// <returns>The current target node position in world coordinates.</returns>
protected Vector2 _currentNodePosition()
{
if (_currentPathNode >= path.Count)
return Vector2.Zero;
return sceneObject.Position + path[_currentPathNode];
}
/// <summary>
/// Swaps out current and previous nodes and loops the path, if specified.
/// </summary>
protected virtual void _reachedNode()
{
myOwner.Physics.Velocity = Vector2.Zero;
myOwner.Position = _destination;
if (_currentPathNode < path.Count - 1)
{
_currentPathNode++;
_travelToCurrentNode();
}
else if (_loop && _currentPathNode >= path.Count - 1)
{
_currentPathNode = 0;
_travelToCurrentNode();
}
else
{
_running = false;
}
}
protected override bool _OnRegister(TorqueObject owner)
{
if (!base._OnRegister(owner))
return false;
Assert.Fatal(sceneObject != null, "No scene object defined for the pathComponent");
myOwner = (T2DSceneObject)owner;
//go through the link points
GenerateLinkPaths();
// record the starting position
_startPosition = myOwner.Position;
myOwner.Physics.Velocity = Vector2.Zero;
// start up the platform if it's ready
if (_runOnInit)
Start();
return true;
}
/// <summary>
/// Goes through all the link points and add them to a List.
/// </summary>
protected void GenerateLinkPaths()
{
//The only thing it requires it the SceneObject that has all the link points attached to it
//Returns an order list of points. That can be used for paths and other stuff
bool endSearch = false;
int i = 1;
float linkRotation;
Vector2 linkPosition;
while (!endSearch)
{
String linkPointName = "LinkPoint" + i;
i++;
if (sceneObject.LinkPoints.HasLinkPoint(linkPointName))
{
sceneObject.LinkPoints.GetLinkPoint(linkPointName, out linkPosition, out linkRotation);
float x = (sceneObject.WorldClipRectangle.Width / 2) * linkPosition.X;
float y = (sceneObject.WorldClipRectangle.Height / 2) * linkPosition.Y;
path.Add(new Vector2(x, y));
}
else
{
endSearch = true;
}
}
}
/// <summary>
/// This method allows us to register iterfaces. IT2DForceGenerator is an example of an interface
/// </summary>
/// <param name="owner">Owner of the component</param>
protected override void _RegisterInterfaces(TorqueObject owner)
{
// register the force generator interface to allow us to get
// pre- and post- update physics callbacks
Owner.RegisterCachedInterface("force", String.Empty, this, _forceInterface);
}
#endregion
//======================================================
#region Private, protected, internal fields
private List<Vector2> path = new List<Vector2>();
private Vector2 _source = Vector2.Zero;
private Vector2 _destination = Vector2.Zero;
private Vector2 _startPosition = Vector2.Zero;
private int _currentPathNode;
private bool _running;
private bool _arrived;
private bool _runOnInit = true;
private bool _loop = true;
// force interface
TorqueInterfaceWrap<IT2DForceGenerator> _forceInterface = new TorqueInterfaceWrap<IT2DForceGenerator>();
// scene object (owner)
protected T2DSceneObject myOwner;
float speed;
//The object that will be created and moved around
private T2DSceneObject sceneObject;
#endregion
}
}
[edit]
How to make it work

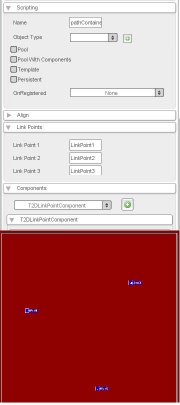

The copy the code into your game. Compile it to create the pathComponent. Then in TXB create an empty T2DSceneObject, giving it a name in the “Scripting paneâ€. This is the where you will create your path. Click on the object and LinkPoints to the object.
Then select the pathComponent on another SceneObject of your choice. Change the path component settings. The “SceneObject†parameter should be the empty SceneObject you created earlier. Add the pathComponent to an T2DSceneObject.
[edit]
Tips
- Make sure the T2DsceneObject is big enough before you begin. If you are interacting with other objects along the path and you make the object bigger, the links points will move, messing things up.
- Lock the path object once you finished with it to stop the path route messing up.
- This method should only be used for relatively small paths. I’m not sure how hundreds of LinkPoints will perform on lower end machines.
Please feel free to edit anything that you think could be more clearly explained.
