1. Extract the zip file into your "../tgb/Resources" directory
2. Create a new project
3. From the Project Menu, choose Resources and add the Car resource to the project
4. Drop the track and the car onto the level
5. On the Edit tab, set the config datablock for the car and the track
6. Save your level

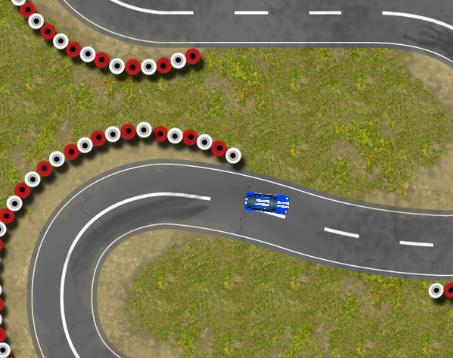

7. Hit play to see it in action!

Note: In order to get your car steering to look as realistic as possible it helps to adjust the pivot to just ahead of the rear wheels. You can do this in your image editing software by leaving just the right amount of blank space behind the rear end of your car image. You can use the image in the resource as an example.

// PhysCar Datablock definition
// play with these variables to change the handling of your car!
datablock t2dSceneObjectDatablock(PhysCarDatablock)
{
   class = "PhysCar"; // associate this datablock with the PhysCar namespace
   maxSteerAngle = "180"; // the maximum angular force used for steering the car (not an angle)
   cTrac = "25"; // coefficient of traction (max speed)
   maxDriftVel = "20"; // maximum speed of drift
   cMass = "0.015"; // mass used in drift calculations
   latDamp = "0.05"; // rate lateral drift fades
   cSlip = "18"; // coefficient of rotational slip
};

// PhysCar onLevelLoaded callback
function PhysCar::onLevelLoaded(%this, %scenegraph)
{
   // init car toggle vars
   %this.gasPedal = false;
   %this.brake = false;
   %this.left = false;
   %this.right = false;

   // init car input vars
   %this.throttle = 0; // ranges from -1 to 1 (full reverse to full forward)
   %this.steering = 0; // ranges from -1 to 1 (full left to full right)

   // init car physics vars
   %this.latSpeed = 0;

   // map keys
   moveMap.bindCmd(keyboard, "up", %this @ ".throttleOn();", %this @ ".throttleOff();");
   moveMap.bindCmd(keyboard, "down", %this @ ".brakeOn();", %this @ ".brakeOff();");
   moveMap.bindCmd(keyboard, "left", %this @ ".leftOn();", %this @ ".leftOff();");
   moveMap.bindCmd(keyboard, "right", %this @ ".rightOn();", %this @ ".rightOff();");

   // enable the timer callback for this object for every 25 milliseconds
   %this.setTimerOn(25);
}

// PhysCar onTimer callback
function PhysCar::onTimer(%this)
{
   // 1. interpret input flags
   // Throttle:
   // if only the gas pedal is pressed and we aren't reversing
   if((%this.gasPedal && !%this.brake) && %this.throttle >=0)
   {
      // increment trottle (forward)
      %this.throttle += 0.005;

      // clamp throttle at 1 for full forward
      if(%this.throttle > 1)
      {
         %this.throttle = 1;
      }
   }
   // if only the 'brake' is pressed and we aren't going forward
   else if((%this.brake && !%this.gasPedal) && %this.throttle <= 0)
   {
      // decrement throttle (reverse)
      %this.throttle -= 0.005;

      // clamp throttle at -1 for full reverse
      if(%this.throttle < -1)
      {
         %this.throttle = -1;
      }
   }
   // either *neother* or *both* gas petal and throttle are activated
   // -or- we are trying to throttle in the opposite direction we are moving
   else
   {
      // lower the throttle from either direction by 0.02
      // if magnitude of throttle is less than 0.02 then set to 0
      // Note: without checking for this, our throttle could skip between
      // negative and positive as it tries to hit zero.
      // for example, immagine the throttle is 0.1
      if(%this.throttle < -0.02)
      {
         %this.throttle += 0.02;
      }
      else if(%this.throttle > 0.02)
      {
         %this.throttle -= 0.02;
      }
      else
      {
         %this.throttle = 0;
      }
   }

   // Steering:
   // if only pressing left and steering isnt to the right
   if((%this.left && !%this.right) && %this.steering <= 0)
   {
      // decrement steering (left)
      %this.steering -= 0.075;

      // clamp steering at -1 (full left)
      if(%this.steering < -1)
      {
         %this.steering = -1;
      }
   }
   // if only pressing right and steering isnt to the left
   else if((%this.right && !%this.left) && %this.steering >= 0)
   {
      // increment steering (right)
      %this.steering += 0.075;

      // clamp stering at 1 (full right)
      if(%this.steering > 1)
      {
         %this.steering = 1;
      }
   }
   else
   {
      // lower the steering from either direction by 0.02
      // if magnitude of steering is less than 0.02 then set to 0
      if(%this.steering < -0.2)
      {
         %this.steering += 0.2;
      }
      else if(%this.steering > 0.2)
      {
         %this.steering -= 0.2;
      }
      else
      {
         %this.steering = 0;
      }
   }

   // 2. calculate longitudinal force
   // get current forward traction force (speed)
   %traction = %this.cTrac * %this.throttle;

   // get longitudinal force vector
   // remember that neg Y is up, so we need -cos(rotation) for Y
   %longVelX = mSin(mDegToRad(%this.getRotation())) * %traction;
   %longVelY = -mCos(mDegToRad(%this.getRotation())) * %traction;

   // 3. steering / angular vel
   // our angular velocity from steering will increase at a rate of
   // (steering * speed^2) and max out at maxSteerAngle
   // get current speed
   %currSpeed = t2dVectorLength(%longVelX SPC %longVelY);

   // adjust steering force:
   // get a base steering force based on speed of movement
   %steerVel = %this.steering * (%currSpeed * %currSpeed);

   // the direction of rotation should be opposite if we are in revere
   if(%this.throttle < 0)
   {
      %steerVel = -%steerVel;
   }

   // clamp angular velocity
   if(%steerVel > %this.maxSteerAngle)
   {
      %steerVel = %this.maxSteerAngle;
   }
   else if(%steerVel < -%this.maxSteerAngle)
   {
      %steerVel = -%this.maxSteerAngle;
   }

   // 4. get lateral drift
   // get forward momentum
   %momentum = %currSpeed * %this.cMass;

   // increment magnitude of our current lateral (sideways) force vector
   // by (momentum scaled by steering and throttle)
   %this.latSpeed += %momentum * mAbs(%this.steering) * %this.throttle;

   // clamp magnitude of drift by maxDriftVel
   if(%this.latSpeed > %this.maxDriftVel)
   {
      %this.latSpeed = %this.maxDriftVel;
   }

   // if magnitude of drift is greater than 0.15
   // (which servers as our drift threshold)
   if(%this.latSpeed > 0.15)
   {
      // dampen drift by latDamp scaled by drift magnitude
      %this.latSpeed -= (%this.latDamp * %this.latSpeed) + 0.05;
   }
   // else zero out drift
   else
   {
      %this.latSpeed = 0;
   }

   %drift = %this.latSpeed;

   // if we're steering right, switch and drift left
   if(%this.steering > 0)
   {
      %drift = -%drift;
   }

   // get lateral drift vector
   %latVelX = mCos(mDegToRad(%this.getRotation())) * %drift;
   %latVelY = mSin(mDegToRad(%this.getRotation())) * %drift;

   // get total linear force vector
   %totalForceX = %latVelX + %longVelX;
   %totalForceY = %latVelY + %longVelY;

   // 5. get slip
   // get slip ammount based on drift force:
   // if drift magnitude is greater than 2
   if(%this.latSpeed > 2)
   {
      // add a little rotational slip
      %slip = %this.cSlip * %this.latSpeed * %driftDir;
   }
   else
   {
      %slip = 0;
   }

   // get total angular velocity
   %angVel = %steerVel + %slip;

   // 6. apply forces
   // apply linear velocity
   %this.setLinearVelocity(%totalForceX SPC %totalForceY);

   // apply angular velocity
   %this.setAngularVelocity(%angVel);
}


// ____ input functions ____
// gas
function PhysCar::throttleOn(%this)
{
   %this.gasPedal = true;
}
function PhysCar::throttleOff(%this)
{
   %this.gasPedal = false;
}

// brake / reverse
function PhysCar::brakeOn(%this)
{
   %this.brake = true;
}
function PhysCar::brakeOff(%this)
{
   %this.brake = false;
}

// steer left
function PhysCar::leftOn(%this)
{
   %this.left = true;
}
function PhysCar::leftOff(%this)
{
   %this.left = false;
}

// steer right
function PhysCar::rightOn(%this)
{
   %this.right = true;
}
function PhysCar::rightOff(%this)
{
   %this.right = false;
}
